تفاصيل المنتج:
|
| إبراز: | fiberglass grating walkway,FRP grating pigeon floor,plastic grid fiberglass mesh,FRP grating pigeon floor,plastic grid fiberglass mesh |
||
|---|---|---|---|

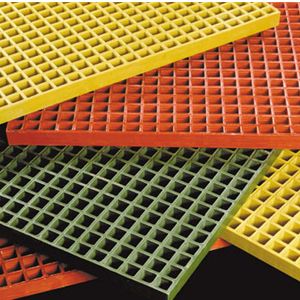

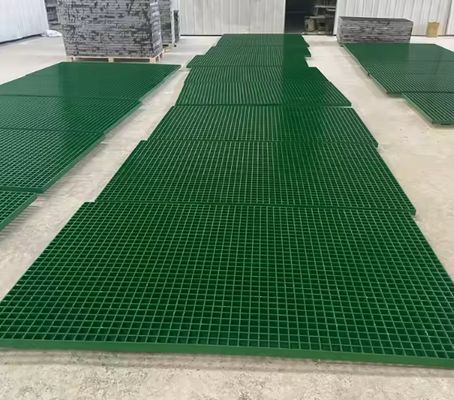

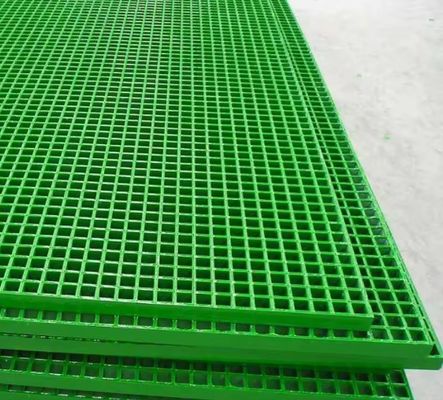

Molded grating is manufactured by laying continuous glass fibers in the mould in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation.
| Product name | FRP Fiberglass molded grating |
|---|---|
| Material composition | Fiberglass roving, resin, filler |
| Resin type | GP, ISO, VE, PH |
| Color | Black, white, red, green, yellow, blue, grey or customized color |
| Surface | Smooth, GritFine grit, Concave, Grit cover, Chequer cover |
| Fabrication length | 1007x3007, 1220x3660, 1007x4047 |
| Certificate | ISO9001, SGS |
| Feature | Aging-Resistant, insulation, corrosion resistance |
| Size | Customised Size |
| Trade terms | EXW, FOB, CNF, CIF |
| Eco-Friendly | Yes |
| Shipping Way | By sea/air/express |
Different types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance such as acid, alkali, salt, organic solvent (in gas or liquid form) and the like over a long period.
Our special formula provide grating with excellent fire resistant performance. Our FRP gratings pass ASTM E-84 Class 1.
The perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of aluminum. Different thickness and mesh size bring the client more choice.
The high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
High strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.
The high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years.
