تفاصيل المنتج:
|
| إبراز: | 304 stainless steel perforated mesh sheet,316 stainless steel punching metal mesh,round hole perforated metal mesh sheet,316 stainless steel punching metal mesh,round hole perforated metal mesh sheet |
||
|---|---|---|---|
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area |
|---|---|---|---|
| 0.045" | 1.14mm | 0.066" | 0.033-0.039" | 0.84-0.99mm | 0.37 |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 0.41 |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.69mm | 0.23 |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 0.35 |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 0.38 |
| 3/32" | 2.38mm | 5/32" | 0.053-0.066" | 1.35-1.68mm | 0.33 |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 0.4 |
| 5/32" | 3.97mm | 3/16" | 0.027-0.066" | 0.68-1.68mm | 0.63 |
| 3/16" | 4.76mm | ¼" | 0.027-0.127" | 0.68-3.23mm | 0.5 |
| 1/4" | 6.35mm | 3/8" | 0.033-0.111",0.25" | 0.84-2.82mm,6.35mm | 0.4 |
| 3/8" | 9.52mm | ½" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 0.51 |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.50mm,3.02mm | 0.4 |
| 1/2" | 12.70mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 0.48 |
| 1/4" Hex | 6.35mm Hex | 0.285 | 0.027-0.033 | 0.68-0.84mm | 0.76 |
| 3/8" Sq. | 9.52mm Sq. | Cane | 0.053-0.066" | 1.35-1.68mm | 0.51 |

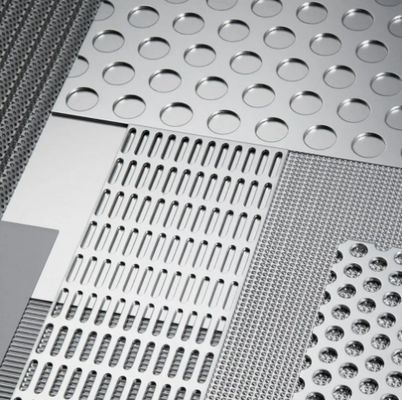

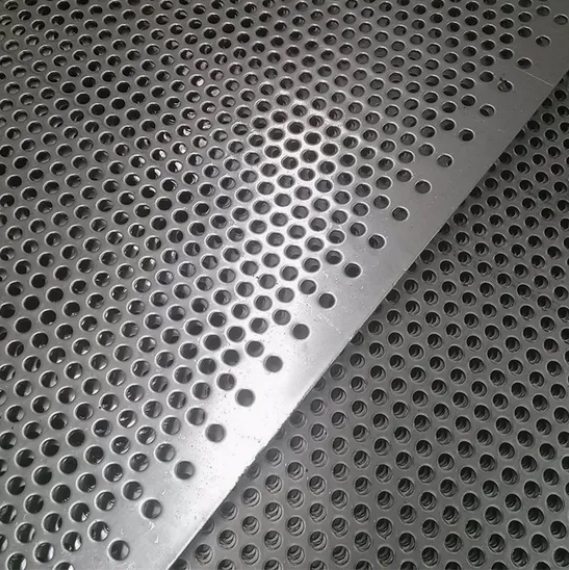

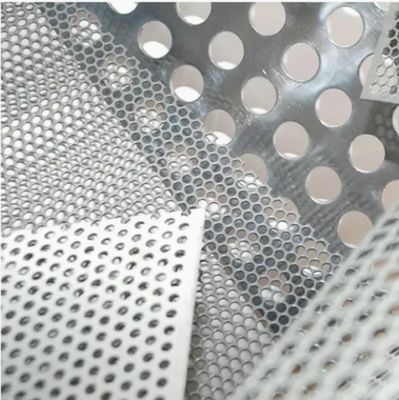

| Product Name | Perforated Metal Mesh |
| Material | Stainless Steel, Low carbon Steel, Aluminum, Galvanized Steel, Copper, Brass, etc |
| Hole Patterns | Straight rows, staggered and arbitrary patterns |
| Thickness | 0.5-10mm |
| Hole Shapes | Round, rectangular, square, hexagonal, diamond, triangular, irregular hole |
| Size |
Sheets: 1m×2m, 1.2m×2.4m, 1.22m×2.44m etc (other sizes can be customized) Rolls: 1m×20m, 1.2m×20m, 1.5m×20m etc (other sizes can be customized) |
| Margin Types | With or without margins |
