تفاصيل المنتج:
|

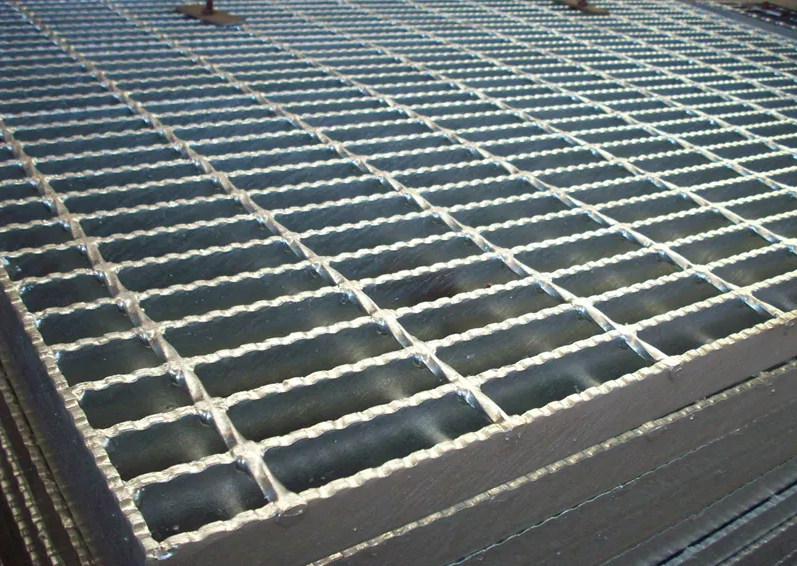

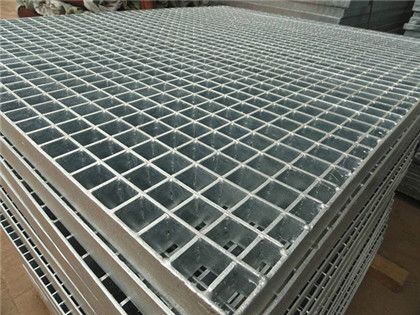

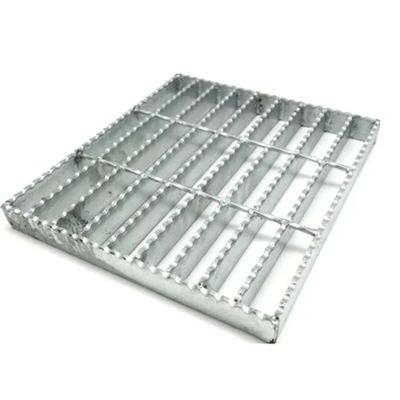

| إبراز: | anti-slip serrated steel grating,steel grating for walkway treads,serrated steel grating for stairs,steel grating for walkway treads,serrated steel grating for stairs |
||
|---|---|---|---|
| Process Type | Technical Features | Applicable Scenarios | Customer Value |
|---|---|---|---|
| Press Welding Process | The load-bearing flat steel and crossbars are joined by high-temperature, high-pressure resistance welding. The weld penetration depth is ≥3 mm, ensuring there are no cold welds or weld separation and providing high overall rigidity. | Long-Term Load-Bearing Scenarios: (such as equipment platforms and walkways) are preferred for areas subject to heavy loads and frequent use. | Reduce long-term maintenance costs and prevent safety hazards caused by solder joint failure. |
| Press Locking | The crossbar is mechanically pressed into the flat steel channel without welding, enabling quick installation and easy modification. | Temporary structures requiring frequent disassembly (e.g., maintenance platforms) | Reduce installation time, enable flexible retrofitting, and lower construction costs. |
| Pitch of Bearing bar | Cross-bar Pitch | 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 30 | 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 40 | 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Pitch of Bearing bar | Cross-bar Pitch | 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 30 | 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 40 | 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
