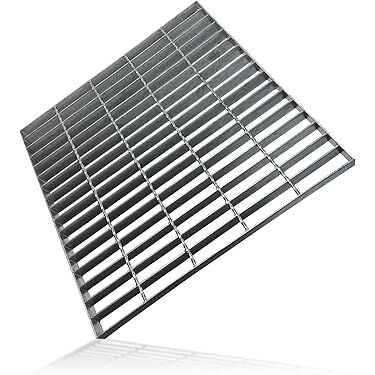

19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

زبون مراجعة
صفي جاء اليوم وأنها تناسب تماما. شكرا. اسمحوا لي أن أعرف إذا كان هناك أي مكان يمكنني ترك ردود فعل إيجابية عن شركتك!

—— أندرو مولن

ابن دردش الآن

19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms
19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

صورة كبيرة :  19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

تفاصيل المنتج:
اسم العلامة التجارية: Gnee
إصدار الشهادات: ISO9001
شروط الدفع والشحن:
الحد الأدنى لكمية: 2pcs
تفاصيل التغليف: إصلاح مع حزام معدني التعبئة مع البليت، غلاف خارجي مع فيلم بلاستيكي مقاوم للماء نهائي في الحاوية
وقت التسليم: يتم شحنها في غضون 20 يوما بعد الدفع
القدرة على العرض: 300000 متر مربع/متر مربع شهريًا

19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

وصف
إبراز:

19W4 Steel Bar Grating,Aluminum Metal Grating,Catwalk Deck Floor Grating

,

Aluminum Metal Grating

,

Catwalk Deck Floor Grating

Heavy Duty 19W4 Aluminum, Galvanized Steel, Stainless Steel Bar Grating

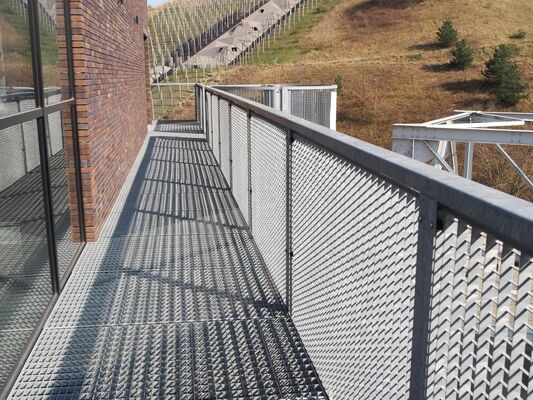

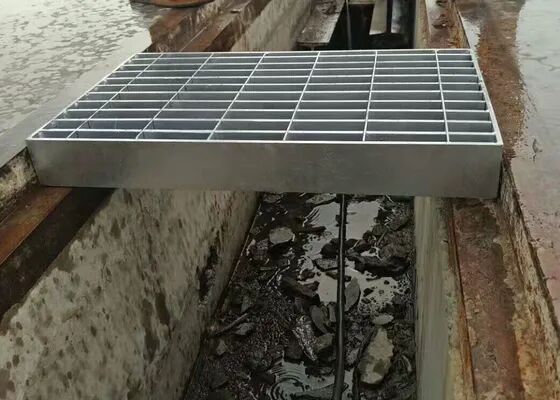

Our high-strength steel bar grating features a firm structure and is available in carbon steel, aluminum steel, or stainless steel. Manufactured using various methods including welded, press-locked, swage-locked, and riveted techniques. Available in both smooth and serrated surface patterns, these gratings offer versatile solutions for stair treads, walkways, platforms, floors, covers, and heavy-duty construction applications.
19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 0 19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 1
Standard Specifications
Pitch of Bearing Bar Cross-bar Pitch Specification of Bearing Bar (width×thickness)
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Pitch of Bearing Bar Cross-bar Pitch Specification of Bearing Bar (width×thickness)
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
Material Specifications
Materials:
Q195, Q235, Q235B / 304, 316 Stainless Steel
Bearing Bar:
  • 25×3, 25×4, 25×4.5, 25×5
  • 30×3, 30×4, 30×4.5, 30×5
  • 32×5, 40×5, 50×5, 65×5
  • 75×6, 75×10---100×10mm
  • I bar: 25×5×3, 30×5×3, 32×5×3, 40×5×3
  • US standard: 1"×3/16", 1 1/4"×3/16", 1 1/2"×3/16"
  • 1"×1/4", 1 1/4"×1/4", 1 1/2"×1/4"
  • 1"×1/8", 1 1/4"×1/8", 1 1/2"×1/8"
Bearing Bar Pitch:
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm
US Standard:
19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted Cross Bar Pitch:
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
Steel Grade:
ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel
Surface Treatment:
Black, self color, hot dip galvanized, painted, spray coating
Grating Style:
Plain / Smooth, Serrated / teeth, I bar, serrated I bar
19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 2
