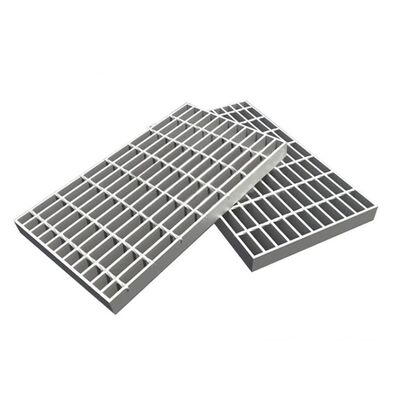

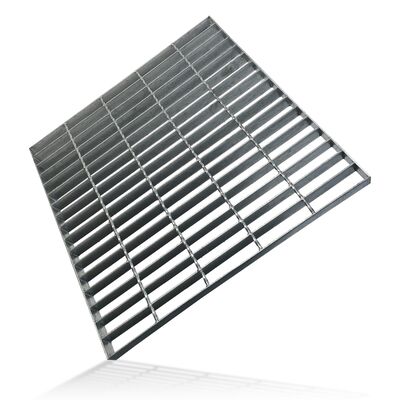

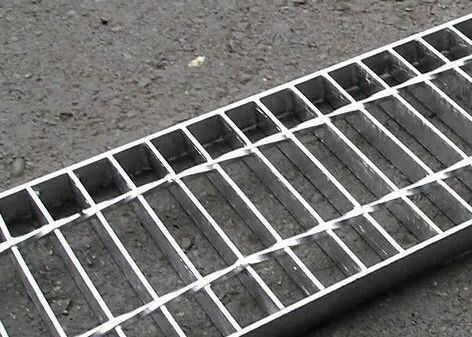

Steel Bar Grating, also known as welded steel bar grate, is an extremely strong and durable solution for all load bearing applications, primarily used for pedestrian and light vehicle traffic.
Available in a variety of bearing bar spacing and thickness options to meet different application requirements and load capacities. Offered in either smooth top or serrated versions for slip resistance.
| Specification | Details |
|---|---|
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel, etc |
| Bearing Bar (width x thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4.5, 30x5, 40x5, 50x5, 65x5, 75x6,75x10, 100x10mm, etc. I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc. |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41, 41.25, 60, 80mm, etc. US Standard: 19-W-4, 15-W-4, 11-W-4, 19-W-2, 15-W-2, etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2"&4", etc. |
| Surface treatment | Untreated(black), hot dipped galvanized, powder coated, electroplate, painting or as per customers' requirements |
| Grating Types | Plain/Smooth, Serrated/teeth, I bar, serrated I bar, Serrated I bar |
| Exporting Packing Ways |
LCL(Less than one container load): packed with plastic film + wooden pallets FCL(full container load): nude packing Other special packages: according to customers' request |
Special specifications can be ordered according to your requirements!
| Bearing bar pitch | Cross bar pitch | Load steel size (width x thickness) | |||||
|---|---|---|---|---|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| Bearing bar pitch | Cross bar pitch | Load steel size (width x thickness) | |||||
|---|---|---|---|---|---|---|---|
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
