Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

Name: Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface
Brand: Gnee Steel (tianjin) Co., Ltd
Price: 399.30 USD
Availability: InStock

جميع المنتجات

المجلفن الصلب المشبك
(41)

مسننة الصلب المشبك
(48)

الصلب صريف استنزاف الغلاف
(57)

البلاستيك الطابق صريف
(33)

المجلفن الصلب درج معالجتها
(73)

الفولاذ المقاوم للصدأ المشبك
(46)

الضغط مقفل الصلب المشبك
(27)

مقاطع الصلب المشبك
(12)

منصة الصلب المشبك
(53)

الثقيلة صريف الصلب
(40)

الأسلاك الحديد المجلفن
(36)

قضيب من الفولاذ مقضب
(20)

توسيع شبكة معدنية
(17)

شبكة معدنية مثقبة
(34)

زبون مراجعة

صفي جاء اليوم وأنها تناسب تماما. شكرا. اسمحوا لي أن أعرف إذا كان هناك أي مكان يمكنني ترك ردود فعل إيجابية عن شركتك!

—— أندرو مولن

ابن دردش الآن

Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

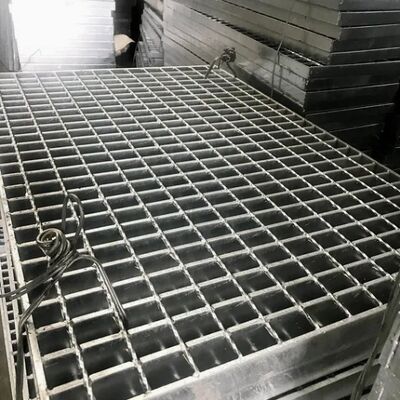

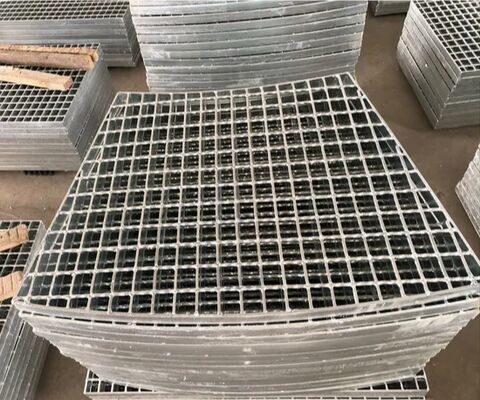

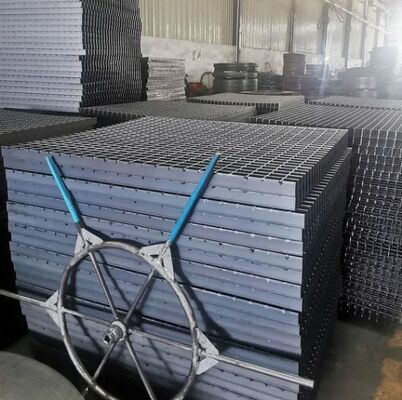

صورة كبيرة : Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

تفاصيل المنتج:

اسم العلامة التجارية:	Gnee

شروط الدفع والشحن:

الحد الأدنى لكمية:	2 قطعة
تفاصيل التغليف:	إصلاح مع حزام معدني التعبئة مع البليت، غلاف خارجي مع فيلم بلاستيكي مقاوم للماء نهائي في الحاوية
وقت التسليم:	يتم الشحن خلال 20 يومًا بعد الدفع
القدرة على العرض:	300000 متر مربع / الأمتار شهرا

اتصل

Stainless Steel Grating with G405/40/100 Specification in 304, 304L, 316, 316L Stainless Steel and Serrated Surface

وصف

إبراز:

G405/40/100 Specification Stainless Steel Grating,304, 304L, 316, 316L Stainless Steel Grating,Serrated Surface Steel Bar Grating

304 304L

316 316L Stainless Steel Grating

Serrated Surface Steel Bar Grating

Industrial Steel Floor Grating Solutions

Steel bar grating is engineered for exceptional strength and durability, manufactured from carbon steel, aluminum, or stainless steel. Available in four primary construction types—welded bar, press-locked, swage-locked, and riveted grating—these products offer both smooth and serrated surface options to meet diverse application requirements.

With extensive style and size variations, steel grating serves multiple functions including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment pathways, security screens, and heavy-duty construction applications.

Stainless Steel Grating Applications

Stainless steel bar grating is the preferred choice for food processing facilities and environments where both corrosion resistance and aesthetic appeal are essential. These gratings deliver superior performance through:

Exceptional corrosion resistance
High wear resistance
Extended service life that offsets initial manufacturing costs

Product Specifications

Our stainless steel bar grating sheets with specification code G405/40/100 feature bearing bars measuring 40mm deep and 5mm thick, with bearing bar spacing of 40mm and cross bar spacing of 100mm. The theoretical weight is approximately 49.6 kg/m².

Manufacturing options include manual welding (MW) for custom sizes and press welding (PW) with maximum widths up to 1200mm.

Technical Specifications

Specification	Description
Material	304, 304L, 316, 316L stainless steel
Manufacturing Process	Welded, swage-locked, or press-locked
Surface Type	Standard plain surface, serrated surface
Cross Bar Spacing	2" or 4", center to center
Bearing Bar Spacing	15/16" or 1-3/16", center to center
Bearing Bar Height	20mm to 60mm
Bearing Bar Thickness	2mm to 5mm
Cross Bar Size	4mm to 10mm diameter
Slip Resistance	Serrated or plain surface, depending on application
Installation Method	Welding, clips, or bolts and nuts
Compliance	Meets industry standards including ASTM, ISO, and ANSI/NAAMM

For detailed safe load data and engineering specifications, please contact our technical team for professional assistance.
