تفاصيل المنتج:
|

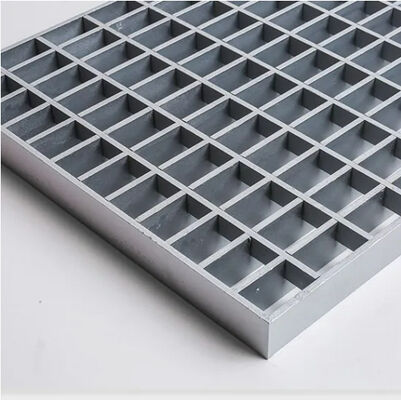

| إبراز: | Mini Mesh Stainless Steel Grating,Passivation Finish Bar Grating,Heel Guard Metal Grating,Passivation Finish Bar Grating,Heel Guard Metal Grating |
||
|---|---|---|---|
| No | Item | Description |
|---|---|---|
| 1 | Bearing Bar | 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4" etc. |
| 3 | Cross Bar Pitch | 38, 50, 76, 100, 101.6mm |
| 4 | Material | Q235, A36, SS304 |
| 5 | Surface Treatment | Black, hot dipped galvanizing, paint |
| 6 | Standard | China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 |
| Country | Bar Grating Standard | Steel | Hot-dip Galvanizing |
|---|---|---|---|
| P.R. China | YB/T 4001.1-2019 | GB/T700-2006 | GB/T13912-2002 |
| U.S.A. | ANSI NAAMM MBG 531-00 | ASTM (A36) | ASTM A123 |
| U.K. | BS 4592-1987 | BS4360(43A) | BS729 |
| Australia | AS 1657-1985 | AS3697 | AS 1650 |
| Europe | EN 1090 | EN 10025:1993 | EN ISO 1461-1999 |
